Damped Oscillator Model

import numpy as np
import matplotlib.pyplot as plt
import uqtestfuns as uqtf

The damped oscillator model is a seven-dimensional scalar-valued function. The model was first proposed in [IK85] and used in the context of reliability analysis in [DKDS91, Dub11].

Note

The reliability analysis variant differs from this base model. Used in the context of reliability analysis, the model also includes additional parameters of a capacity factor and load such that the performance function can be computed. This base model only computes the relative displacement of the spring.

Test function instance

To create a default instance of the damped oscillator model:

my_testfun = uqtf.DampedOscillator()

Check if it has been correctly instantiated:

print(my_testfun)

Function ID      : DampedOscillator
Input Dimension  : 7 (fixed)
Output Dimension : 1
Parameterized    : False
Description      : Damped oscillator model from Igusa and Der Kiureghian (1985)
Applications     : metamodeling, sensitivity

Description

The damped oscillator model is based on a two degree-of-freedom primary-secondary mechanical system characterized by two masses, two springs, and the corresponding damping ratios. Originally, the model computes the mean-square relative displacement of the secondary spring under a white noise base acceleration using the following analytical formula[1]:

\[ \mathcal{M}(\boldsymbol{x}) = \left( \pi \frac{S_0}{4 \zeta_s \omega_s^3} \frac{\zeta_a \zeta_s}{\zeta_p \zeta_s (4 \zeta_a^2 + \theta^2) + \gamma \zeta_a^2} \frac{(\zeta_p \omega_p^3 + \zeta_s \omega_s^3) \omega_p}{4 \zeta_a \omega_a^4} \right)^{0.5} \]

\[\begin{split} \begin{aligned} \omega_p & = \left( \frac{k_p}{m_p}\right)^{0.5} & \omega_s & = \left(\frac{k_s}{m_s}\right)^{0.5} & \omega_a & = \frac{\omega_p + \omega_s}{2}\\ \gamma & = \frac{m_s}{m_p} & \zeta_a & = \frac{\zeta_p + \zeta_s}{2} & \theta & = \frac{\omega_p - \omega_s}{\omega_a} \\ \end{aligned} \end{split}\]

where \(\boldsymbol{x} = \{ M_p, M_s, K_p, K_s, \zeta_p, \zeta_s, S_0 \}\) is the seven-dimensional vector of input variables further defined below.

Note

In UQTestFuns, this original output is square-rooted to get the relative displacement

Probabilistic input

Based on [DKDS91], the probabilistic input model for the damped oscillator model consists of seven independent random variables with marginal distributions shown in the table below.

Show code cell source

Hide code cell source

print(my_testfun.prob_input)

Function ID     : DampedOscillator
Input ID        : DerKiureghian1991
Input Dimension : 7
Description     : Probabilistic input model for the Damped Oscillator model
                  from Der Kiureghian and De Stefano (1991).
Marginals       :

 No.    Name    Distribution          Parameters                   Description
-----  ------  --------------  -------------------------  -----------------------------
  1      Mp      lognormal      [0.40048994 0.09975135]           Primary mass
  2      Ms      lognormal     [-4.61014535  0.09975135]         Secondary mass
  3      Kp      lognormal     [-0.01961036  0.1980422 ]    Primary spring stiffness
  4      Ks      lognormal     [-4.62478054  0.1980422 ]   Secondary spring stiffness
  5    Zeta_p    lognormal     [-3.06994228  0.38525317]      Primary damping ratio
  6    Zeta_s    lognormal     [-4.02359478  0.47238073]     Secondary damping ratio
  7      S0      lognormal      [4.60019502 0.09975135]   White noise base acceleration

Copulas         : Independence

Reference results

This section provides several reference results of typical UQ analyses involving the test function.

Sample histogram

Shown below is the histogram of the output based on \(100'000\) random points:

Show code cell source

Hide code cell source

np.random.seed(42)
xx_test = my_testfun.prob_input.get_sample(100000)
yy_test = my_testfun(xx_test)

plt.hist(yy_test, bins="auto", color="#8da0cb");
plt.grid();
plt.ylabel("Counts [-]");
plt.xlabel("$\mathcal{M}(\mathbf{X})$");
plt.gcf().set_dpi(150);

Moments estimation

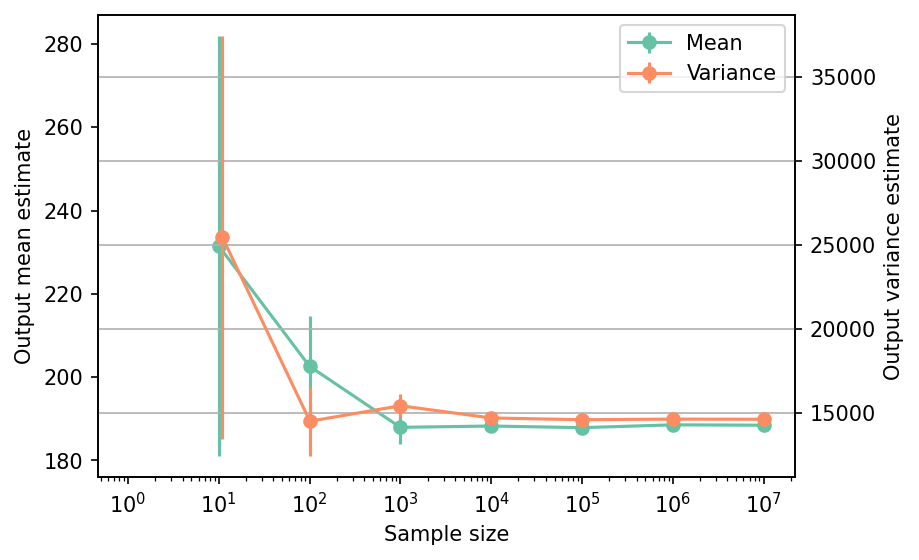

Shown below is the convergence of a direct Monte-Carlo estimation of the output mean and variance with increasing sample sizes.

Show code cell source

Hide code cell source

# --- Compute the mean and variance estimate
np.random.seed(42)
sample_sizes = np.array([1e1, 1e2, 1e3, 1e4, 1e5, 1e6, 1e7], dtype=int)
mean_estimates = np.empty(len(sample_sizes))
var_estimates = np.empty(len(sample_sizes))

for i, sample_size in enumerate(sample_sizes):
    xx_test = my_testfun.prob_input.get_sample(sample_size)
    yy_test = my_testfun(xx_test)
    mean_estimates[i] = np.mean(yy_test)
    var_estimates[i] = np.var(yy_test)

# --- Compute the error associated with the estimates
mean_estimates_errors = np.sqrt(var_estimates) / np.sqrt(np.array(sample_sizes))
var_estimates_errors = var_estimates * np.sqrt(2 / (np.array(sample_sizes) - 1))

# --- Do the plot
fig, ax_1 = plt.subplots(figsize=(6,4))

ax_1.errorbar(
    sample_sizes,
    mean_estimates,
    yerr=mean_estimates_errors,
    marker="o",
    color="#66c2a5",
    label="Mean",
)
ax_1.set_xlabel("Sample size")
ax_1.set_ylabel("Output mean estimate")
ax_1.set_xscale("log");
ax_2 = ax_1.twinx()
ax_2.errorbar(
    sample_sizes + 1,
    var_estimates,
    yerr=var_estimates_errors,
    marker="o",
    color="#fc8d62",
    label="Variance",
)
ax_2.set_ylabel("Output variance estimate")

# Add the two plots together to have a common legend
ln_1, labels_1 = ax_1.get_legend_handles_labels()
ln_2, labels_2 = ax_2.get_legend_handles_labels()
ax_2.legend(ln_1 + ln_2, labels_1 + labels_2, loc=0)

plt.grid()
fig.set_dpi(150)

The tabulated results for each sample size is shown below.

Show code cell source

Hide code cell source

from tabulate import tabulate

# --- Compile data row-wise
outputs = []
for (
    sample_size,
    mean_estimate,
    mean_estimate_error,
    var_estimate,
    var_estimate_error,
) in zip(
    sample_sizes,
    mean_estimates,
    mean_estimates_errors,
    var_estimates,
    var_estimates_errors,
):
    outputs += [
        [
            sample_size,
            mean_estimate,
            mean_estimate_error,
            var_estimate,
            var_estimate_error,
            "Monte-Carlo",
        ],
    ]

header_names = [
    "Sample size",
    "Mean",
    "Mean error",
    "Variance",
    "Variance error",
    "Remark",
]

tabulate(
    outputs,
    headers=header_names,
    floatfmt=(".1e", ".4e", ".4e", ".4e", ".4e", "s"),
    tablefmt="html",
    stralign="center",
    numalign="center",
)

Sample size	Mean	Mean error	Variance	Variance error	Remark
10	2.3153e+02	5.0438e+01	2.5440e+04	1.1992e+04	Monte-Carlo
100	2.0262e+02	1.2047e+01	1.4512e+04	2.0627e+03	Monte-Carlo
1000	1.8794e+02	3.9283e+00	1.5431e+04	6.9045e+02	Monte-Carlo
10000	1.8826e+02	1.2126e+00	1.4704e+04	2.0796e+02	Monte-Carlo
100000	1.8787e+02	3.8212e-01	1.4601e+04	6.5300e+01	Monte-Carlo
1000000	1.8854e+02	1.2098e-01	1.4637e+04	2.0699e+01	Monte-Carlo
10000000	1.8845e+02	3.8248e-02	1.4629e+04	6.5422e+00	Monte-Carlo

References

[IK85]

Takeru Igusa and Armen Der Kiureghian. Dynamic characterization of two-degree-of-freedom equipment-structure systems. Journal of Engineering Mechanics, 111(1):1–19, 1985. doi:10.1061/(asce)0733-9399(1985)111:1(1).

[DKDS91] (1,2)

Armen Der Kiureghian and Mario De Stefano. Efficient algorithm for second-order reliability analysis. Journal of Engineering Mechanics, 117(12):2904–2923, 1991. doi:10.1061/(asce)0733-9399(1991)117:12(2904).

[Dub11] (1,2)

Vincent Dubourg. Adaptive surrogate models for reliability analysis and reliability-based design optimization. phdthesis, Université Blaise Pascal - Clermont II, Clermont-Ferrand, France, 2011.

---

[1]

see, for instance, Eqs. (5.5), pp. 184 in [Dub11].
