Moon (2010) Three-Dimensional Function

import numpy as np
import matplotlib.pyplot as plt
import uqtestfuns as uqtf

The three-dimensional function from [Moo10] (or Moon3D for short) is a scalar-valued test function used in [Moo10] to illustrate the analytical derivation of Sobol’ sensitivity indices.

Test function instance

To create an instance of the test function:

my_testfun = uqtf.Moon3D()

Check if it has been correctly instantiated:

print(my_testfun)

Function ID      : Moon3D
Input Dimension  : 3 (fixed)
Output Dimension : 1
Parameterized    : False
Description      : Three-dimensional function from Moon (2010)
Applications     : sensitivity

Description

The function Moon3D is a three-dimensional function given by the following formula[1]:

\[ \mathcal{M}(\boldsymbol{x}) = x_1 + x_2 + 3 \, x_1 x_3 \]

where \(\boldsymbol{x} = \{ x_1, x_2, x_3 \}\) is the three-dimensional vector of input variables further defined below.

Probabilistic input

Based on [Moo10], the probabilistic input model for the function consists of three independent uniform random variables with the ranges shown in the table below.

Show code cell source

Hide code cell source

print(my_testfun.prob_input)

Function ID     : Moon3D
Input ID        : Moon2010
Input Dimension : 3
Description     : Probabilistic input model for the 3D test function from
                  Moon (2010)
Marginals       :

 No.    Name    Distribution    Parameters    Description
-----  ------  --------------  ------------  -------------
  1      X1       uniform         [0 1]            -
  2      X2       uniform         [0 1]            -
  3      X3       uniform         [0 1]            -

Copulas         : Independence

Reference results

This section provides several reference results of typical UQ analyses involving the test function.

Sample histogram

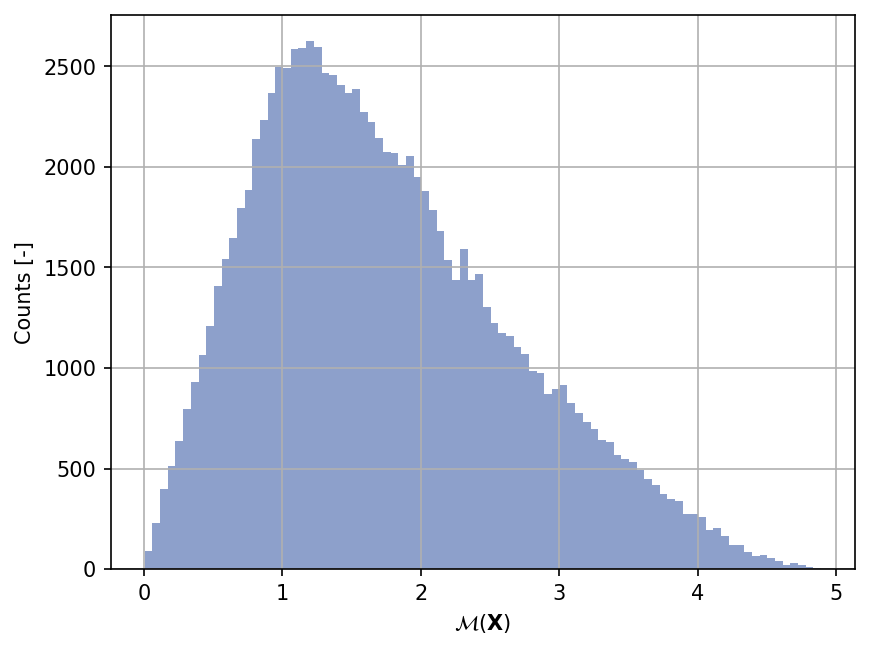

Shown below is the histogram of the output based on \(100'000\) random points:

Show code cell source

Hide code cell source

np.random.seed(42)
xx_test = my_testfun.prob_input.get_sample(100000)
yy_test = my_testfun(xx_test)

plt.hist(yy_test, bins="auto", color="#8da0cb");
plt.grid();
plt.ylabel("Counts [-]");
plt.xlabel("$\mathcal{M}(\mathbf{X})$");
plt.gcf().set_dpi(150);

Moment estimations

The mean and variance of the test function can be computed analytically,
and the results are:

• \(\mathbb{E}[Y] = \frac{7}{4}\)

• \(\mathbb{V}[Y] = \frac{41}{48}\)

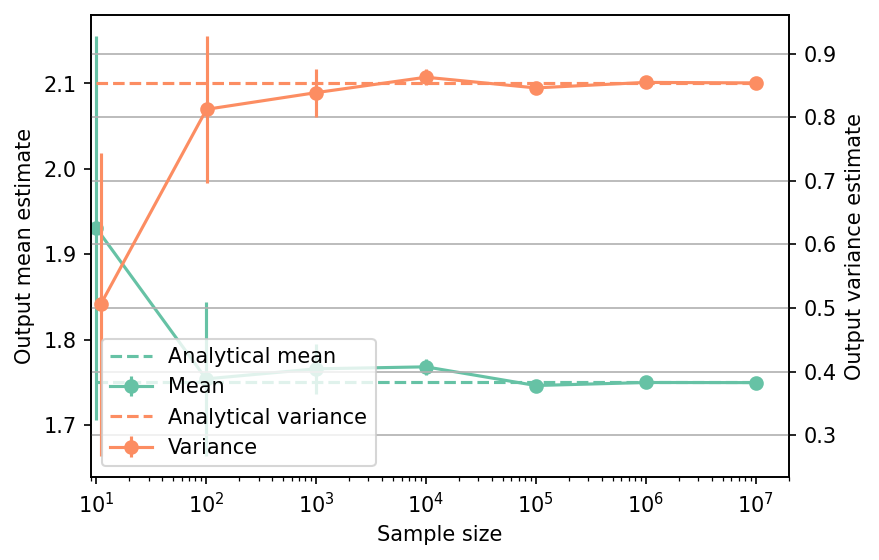

Shown below is the convergence of a direct Monte-Carlo estimation of the output mean and variance with increasing sample sizes compared with the analytical values.

Show code cell source

Hide code cell source

# --- Compute the mean and variance estimate
np.random.seed(42)
sample_sizes = np.array([1e1, 1e2, 1e3, 1e4, 1e5, 1e6, 1e7], dtype=int)
mean_estimates = np.empty(len(sample_sizes))
var_estimates = np.empty(len(sample_sizes))

for i, sample_size in enumerate(sample_sizes):
    xx_test = my_testfun.prob_input.get_sample(sample_size)
    yy_test = my_testfun(xx_test)
    mean_estimates[i] = np.mean(yy_test)
    var_estimates[i] = np.var(yy_test)

# --- Compute the error associated with the estimates
mean_estimates_errors = np.sqrt(var_estimates) / np.sqrt(np.array(sample_sizes))
var_estimates_errors = var_estimates * np.sqrt(2 / (np.array(sample_sizes) - 1))

fig, ax_1 = plt.subplots(figsize=(6,4))

# --- Mean plot
ax_1.errorbar(
    sample_sizes,
    mean_estimates,
    yerr=mean_estimates_errors,
    marker="o",
    color="#66c2a5",
    label="Mean"
)
# Plot the analytical mean
mean_analytical = 7/4
ax_1.plot(
    sample_sizes,
    np.repeat(mean_analytical, len(sample_sizes)),
    linestyle="--",
    color="#66c2a5",
    label="Analytical mean",
)
ax_1.set_xlim([9, 2e7])
ax_1.set_xlabel("Sample size")
ax_1.set_ylabel("Output mean estimate")
ax_1.set_xscale("log");
ax_2 = ax_1.twinx()

# --- Variance plot
ax_2.errorbar(
    sample_sizes+1,
    var_estimates,
    yerr=var_estimates_errors,
    marker="o",
    color="#fc8d62",
    label="Variance",
)
# Plot the analytical variance
var_analytical = 41/48
ax_2.plot(
    sample_sizes,
    np.repeat(var_analytical, len(sample_sizes)),
    linestyle="--",
    color="#fc8d62",
    label="Analytical variance",
)
ax_2.set_ylabel("Output variance estimate")

# Add the two plots together to have a common legend
ln_1, labels_1 = ax_1.get_legend_handles_labels()
ln_2, labels_2 = ax_2.get_legend_handles_labels()
ax_2.legend(ln_1 + ln_2, labels_1 + labels_2, loc=0)

plt.grid()
fig.set_dpi(150)

The tabulated results for each sample size is shown below.

Show code cell source

Hide code cell source

from tabulate import tabulate

# --- Compile data row-wise
outputs = [
    [
        np.nan,
        mean_analytical,
        0.0,
        var_analytical,
        0.0,
        "Analytical",
    ]
]

for (
    sample_size,
    mean_estimate,
    mean_estimate_error,
    var_estimate,
    var_estimate_error,
) in zip(
    sample_sizes,
    mean_estimates,
    mean_estimates_errors,
    var_estimates,
    var_estimates_errors,
):
    outputs += [
        [
            sample_size,
            mean_estimate,
            mean_estimate_error,
            var_estimate,
            var_estimate_error,
            "Monte-Carlo",
        ],
    ]

header_names = [
    "Sample size",
    "Mean",
    "Mean error",
    "Variance",
    "Variance error",
    "Remark",
]

tabulate(
    outputs,
    headers=header_names,
    floatfmt=(".1e", ".4e", ".4e", ".4e", ".4e", "s"),
    tablefmt="html",
    stralign="center",
    numalign="center",
)

Sample size	Mean	Mean error	Variance	Variance error	Remark
nan	1.7500e+00	0.0000e+00	8.5417e-01	0.0000e+00	Analytical
1.0e+01	1.9308e+00	2.2489e-01	5.0574e-01	2.3841e-01	Monte-Carlo
1.0e+02	1.7542e+00	9.0128e-02	8.1230e-01	1.1546e-01	Monte-Carlo
1.0e+03	1.7659e+00	2.8957e-02	8.3850e-01	3.7518e-02	Monte-Carlo
1.0e+04	1.7683e+00	9.2884e-03	8.6274e-01	1.2202e-02	Monte-Carlo
1.0e+05	1.7464e+00	2.9085e-03	8.4594e-01	3.7832e-03	Monte-Carlo
1.0e+06	1.7500e+00	9.2445e-04	8.5461e-01	1.2086e-03	Monte-Carlo
1.0e+07	1.7498e+00	2.9220e-04	8.5380e-01	3.8183e-04	Monte-Carlo

Sensitivity indices

The main-effect and total-effect Sobol’ indices of the test function can be
derived analytically.

Table 1 Main-effect and Total-effect sensitivity indices of the function

Input	Main-effect (\(S_i\))	Total-effect (\(ST_i\))
\(x_1\)	\(\frac{25}{41}\)	\(\frac{28}{41}\)
\(x_2\)	\(\frac{4}{41}\)	\(\frac{4}{41}\)
\(x_3\)	\(\frac{9}{41}\)	\(\frac{12}{41}\)

References

[Moo10] (1,2,3,4)

Hyejung Moon. Design and analysis of computer experiments for screening input variables. PhD thesis, Ohio State University, Ohio, 2010. URL: http://rave.ohiolink.edu/etdc/view?acc_num=osu1275422248.

---

[1]

see Eq. (5.46) in Section 5.1.4, pp. 546-547 in [Moo10].
