Damped Oscillator Reliability

import numpy as np
import matplotlib.pyplot as plt
import uqtestfuns as uqtf

The damped oscillator reliability problem is an eight-dimensional reliability analysis test function [DKDS91, Dub11, DKDS90, BDL11].

Note

The reliability analysis variant differs from the base model. The base model computes the mean-square relative displacement of the secondary spring without reference to the performance of the system.

Test function instance

To create a default instance of the test function:

my_testfun = uqtf.DampedOscillatorReliability()

Check if it has been correctly instantiated:

print(my_testfun)

Function ID      : DampedOscillatorReliability
Input Dimension  : 8 (fixed)
Output Dimension : 1
Parameterized    : True
Description      : Performance function from Der Kiureghian and De Stefano (1990)
Applications     : reliability

Description

The problem poses the reliability of a damped oscillator system as defined in [IK85] (see Damped Oscillator). The reliability of the system depends on the secondary spring as described by the following performance function [Dub11, DKDS90] [1]:

\[ g(\boldsymbol{x}; p) = F_s - p k_s \mathcal{M}(M_p, M_s, K_p, K_s, \zeta_p, \zeta_s, S_0), \]

\[ \mathcal{M}(M_p, M_s, K_p, K_s, \zeta_p, \zeta_s, S_0) = \left( \pi \frac{S_0}{4 \zeta_s \omega_s^3} \frac{\zeta_a \zeta_s}{\zeta_p \zeta_s (4 \zeta_a^2 + \theta^2) + \gamma \zeta_a^2} \frac{(\zeta_p \omega_p^3 + \zeta_s \omega_s^3) \omega_p}{4 \zeta_a \omega_a^4} \right)^{0.5} \]

\[\begin{split} \begin{aligned} \omega_p & = \left( \frac{k_p}{m_p}\right)^{0.5} & \omega_s & = \left(\frac{k_s}{m_s}\right)^{0.5} & \omega_a & = \frac{\omega_p + \omega_s}{2}\\ \gamma & = \frac{m_s}{m_p} & \zeta_a & = \frac{\zeta_p + \zeta_s}{2} & \theta & = \frac{\omega_p - \omega_s}{\omega_a} \\ \end{aligned} \end{split}\]

where \(\boldsymbol{x} = \{ M_p, M_s, K_p, K_s, \zeta_p, \zeta_s, S_0, F_s \}\) is the eight-dimensional vector of input variables probabilistically defined further below and \(p\) is a deterministic parameter of the function (i.e., the peak factor).

The failure state and the failure probability are defined as \(g(\boldsymbol{x}; p) \leq 0\) and \(\mathbb{P}[g(\boldsymbol{X}; p) \leq 0]\), respectively.

Probabilistic input

Based on [DKDS91], the probabilistic input model for the damped oscillator reliability consists of eight independent random variables with marginal distributions shown in the table below.

Show code cell source Hide code cell source

print(my_testfun.prob_input)

Function ID     : DampedOscillatorReliability
Input ID        : DerKiureghian1990a
Input Dimension : 8
Description     : Input model #1 for the damped oscillator reliability from
                  Der Kiureghian and De Stefano (1990)
Marginals       :

 No.    Name    Distribution          Parameters                       Description
-----  ------  --------------  -------------------------  --------------------------------------
  1      Mp      lognormal      [0.40048994 0.09975135]                Primary mass
  2      Ms      lognormal     [-4.61014535  0.09975135]              Secondary mass
  3      Kp      lognormal     [-0.01961036  0.1980422 ]         Primary spring stiffness
  4      Ks      lognormal     [-4.62478054  0.1980422 ]        Secondary spring stiffness
  5    Zeta_p    lognormal     [-3.06994228  0.38525317]          Primary damping ratio
  6    Zeta_s    lognormal     [-4.02359478  0.47238073]         Secondary damping ratio
  7      S0      lognormal      [4.60019502 0.09975135]       White noise base acceleration
  8      Fs      lognormal      [2.70307504 0.09975135]   Force capacity of the secondary spring

Copulas         : Independence

In the literature, the force capacity of the secondary spring (i.e., \(F_s\)) have different probabilistic specifications as summarized in the table below.

\(F_S\)	Keyword	Source
\(\mathcal{N}_{\mathrm{log}}(15.0, 1.50)\)	DerKiureghian1990a (default)	[DKDS90]
\(\mathcal{N}_{\mathrm{log}}(21.5, 2.15)\)	DerKiureghian1990b	[DKDS90]
\(\mathcal{N}_{\mathrm{log}}(27.5, 2.75)\)	DerKiureghian1990c	[DKDS90]

Note that the parameters of the log-normal distribution given above correspond to the mean and standard deviation of the log-normal distribution (and not the mean and standard deviation of the underlying normal distribution).

With the higher mean of \(F_s\), the failure probability becomes smaller.

Parameters

The performance function contains a single parameter whose default value is shown below [DKDS91].

Show code cell source Hide code cell source

print(my_testfun.parameters)

Function ID  : DampedOscillatorReliability
Parameter ID : DerKiureghian1990
Description  : Parameter set for the damped oscillator reliability
               problem from Der Kiureghian and De Stefano (1990)

 No.    Keyword      Value      Type     Description
-----  ---------  -----------  ------  ---------------
  1       pf      3.00000e+00  float   Peak factor [-]

Reference results

This section provides several reference results of typical UQ analyses involving the test function.

Sample histogram

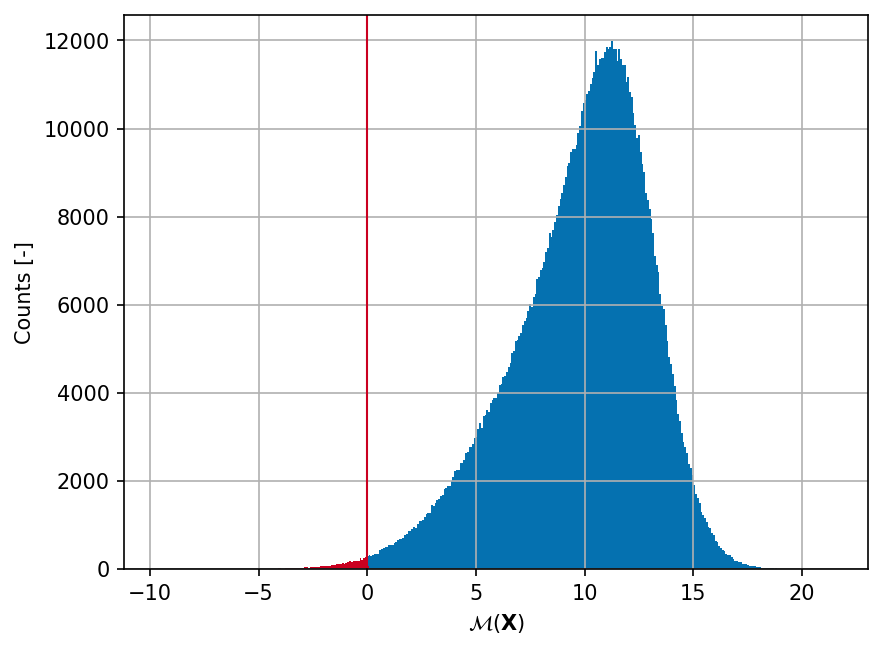

Shown below is the histogram of the output based on \(10^6\) random points:

Show code cell source Hide code cell source

xx_test = my_testfun.prob_input.get_sample(1000000)
yy_test = my_testfun(xx_test)
idx_pos = yy_test > 0
idx_neg = yy_test <= 0

hist_pos = plt.hist(yy_test, bins="auto", color="#0571b0")
plt.hist(yy_test[idx_neg], bins=hist_pos[1], color="#ca0020")
plt.axvline(0, linewidth=1.0, color="#ca0020")

plt.grid()
plt.ylabel("Counts [-]")
plt.xlabel("$\mathcal{M}(\mathbf{X})$")
plt.gcf().set_dpi(150);

Failure probability

Some reference values for the failure probability \(P_f\) and from the literature are summarized in the table below (\(\mu_{F_s}\) is the log-normal distribution mean of \(F_s\)).

\(\mu_{F_s}\)	Method	\(N\)	\(\hat{P}_f\)	\(\mathrm{CoV}[\hat{P}_f]\)	Source
\(15\)	FORM	\(1'179\)	\(2.19 \times 10^{-2}\)	—	[DKDS90, BDL11]
	SS	\(3 \times 10^5\)	\(4.63 \times 10^{-3}\)	\(< 3\%\)	[Dub11]
	Meta-IS[2]	\(464 + 600\)	\(4.80 \times 10^{-3}\)	\(< 5\%\)	[Dub11]
	SVM + SS	\(1'719\)	\(4.78 \times 10^{-3}\)	\(< 4\%\)	[BDL11]
\(21.5\)	FORM	\(2'520\)	\(3.50 \times 10^{-4}\)	—	[DKDS90, BDL11]
	SS	\(5 \times 10^5\)	\(4.75 \times 10^{-5}\)	\(< 4\%\)	[Dub11]
	Meta-IS	\(336 + 400\)	\(4.46 \times 10^{-5}\)	\(< 5\%\)	[Dub11]
	SVM + SS	\(2'865\)	\(4.42 \times 10^{-5}\)	\(< 7\%\)	[BDL11]
\(27.5\)	FORM	\(2'727\)	\(3.91 \times 10^{-6}\)	—	[DKDS90, BDL11]
	SS	\(7 \times 10^5\)	\(3.47 \times 10^{-7}\)	\(< 5\%\)	[Dub11]
	Meta-IS	\(480 + 200\)	\(3.76 \times 10^{-7}\)	\(< 5\%\)	[Dub11]
	SVM + SS	\(4'011\)	\(3.66 \times 10^{-7}\)	\(< 10\%\)	[BDL11]

Note that in the table above the total number of model evaluations for metamodel-based Importance Sampling (Meta-IS) is the sum of training runs and the correction runs [Dub11].

References

[IK85]

Takeru Igusa and Armen Der Kiureghian. Dynamic characterization of two-degree-of-freedom equipment-structure systems. Journal of Engineering Mechanics, 111(1):1–19, 1985. doi:10.1061/(asce)0733-9399(1985)111:1(1).

[DKDS91] (1,2,3)

Armen Der Kiureghian and Mario De Stefano. Efficient algorithm for second-order reliability analysis. Journal of Engineering Mechanics, 117(12):2904–2923, 1991. doi:10.1061/(asce)0733-9399(1991)117:12(2904).

[Dub11] (1,2,3,4,5,6,7,8,9,10)

Vincent Dubourg. Adaptive surrogate models for reliability analysis and reliability-based design optimization. phdthesis, Université Blaise Pascal - Clermont II, Clermont-Ferrand, France, 2011.

[DKDS90] (1,2,3,4,5,6,7,8)

Armen Der Kiureghian and Mario De Stefano. An efficient algorithm for second-order reliability analysis. techreport UCB/SEMM-90/20, Department of Civil and Environmental Engineering, University of California, Berkeley, 1990.

[BDL11] (1,2,3,4,5,6,7)

J.-M. Bourinet, F. Deheeger, and M. Lemaire. Assessing small failure probabilities by combined subset simulation and support vector machines. Structural Safety, 33(6):343–353, 2011. doi:10.1016/j.strusafe.2011.06.001.

---

[1]

see, for instance, Eqs. (5.5) and (5.7), pp. 184-185 in [Dub11].

[2]

Metamodel-based Importance Sampling
