Highly-Curved Function from Dette and Pepelyshev (2010)

Highly-Curved Function from Dette and Pepelyshev (2010)#

import numpy as np
import matplotlib.pyplot as plt
import uqtestfuns as uqtf

The function is a three-dimensional, scalar-valued function. The function contains no cross-term but curved along each dimension.

The function appeared in [DP10] as a test function for comparing different experimental designs in the construction of metamodels.

Test function instance#

To create a default instance of the test function:

my_testfun = uqtf.DetteCurved()

Check if it has been correctly instantiated:

print(my_testfun)

Function ID      : DetteCurved
Input Dimension  : 3 (fixed)
Output Dimension : 1
Parameterized    : False
Description      : Curved function from Dette and Pepelyshev (2010)
Applications     : metamodeling

Description#

The test function is defined as[1]:

\[ \mathcal{M}(\boldsymbol{x}) = 4 \left( x_1 - 2 + 8 x_2 - 8 x_2^2 \right) + \left( 3 - 4 x_2 \right)^2 + 16 \left( x_3 + 1\right)^{0.5} \left( 2 x_3 - 1\right)^2, \]

where \(\boldsymbol{x} = \left( x_1, x_2, x_3 \right)\) is the three-dimensional vector of input variables further defined below.

Probabilistic input#

The probabilistic input model for the test function is shown below.

Hide code cell source
print(my_testfun.prob_input)

Function ID     : DetteCurved
Input ID        : Dette2010
Input Dimension : 3
Description     : Input specification for the highly-curved test function
                  from Dette and Pepelyshev (2010)
Marginals       :

 No.    Name    Distribution    Parameters    Description
-----  ------  --------------  ------------  -------------
  1     x_1       uniform         [0 1]            -
  2     x_2       uniform         [0 1]            -
  3     x_3       uniform         [0 1]            -

Copulas         : Independence

Reference results#

This section provides several reference results of typical UQ analyses involving the test function.

Sample histogram#

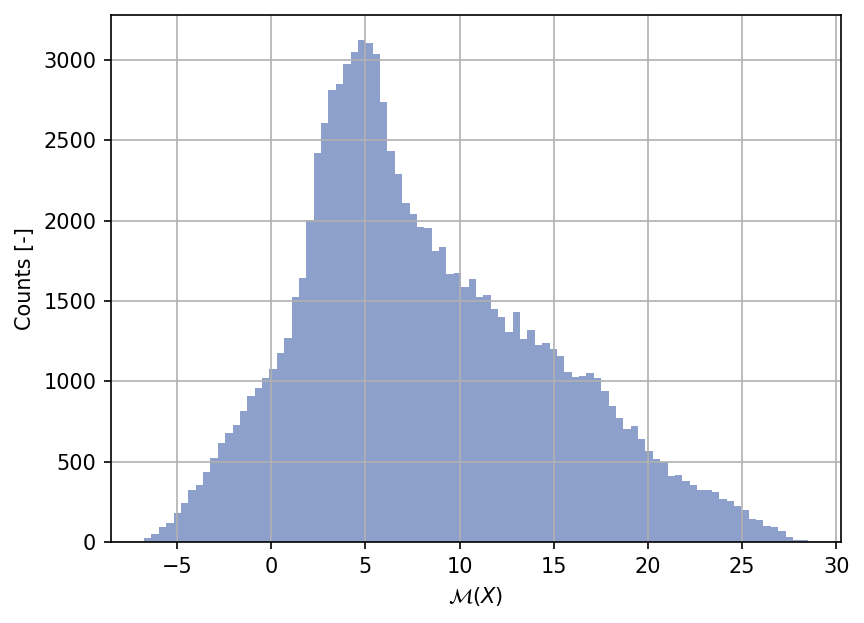

Shown below is the histogram of the output based on \(100'000\) random points:

Hide code cell source
my_testfun.prob_input.reset_rng(42)
xx_test = my_testfun.prob_input.get_sample(100000)
yy_test = my_testfun(xx_test)

plt.hist(yy_test, bins="auto", color="#8da0cb");
plt.grid();
plt.ylabel("Counts [-]");
plt.xlabel("$\mathcal{M}(X)$");
plt.gcf().tight_layout(pad=3.0)
plt.gcf().set_dpi(150);
../_images/f9b1707ac277ed6ba145ed4cd7ca4f4e59509be90b1a3518ead46e38963fc172.png

References#

[DP10] (1,2)

Holger Dette and Andrey Pepelyshev. Generalized latin hypercube design for computer experiments. Technometrics, 52(4):421–429, 2010. doi:10.1198/tech.2010.09157.
