McLain S2 Function

McLain S2 Function#

import numpy as np
import matplotlib.pyplot as plt
import uqtestfuns as uqtf

The McLain S2 function is a two-dimensional scalar-valued function. The function was introduced in [McL74] as a test function for procedures to construct contours from a given set of points.

Note

The McLain’s test functions are a set of five two-dimensional functions that mathematically defines surfaces. The functions are:

  • S1: A part of a sphere

  • S2: A steep hill rising from a plain (this function)

  • S3: A less steep hill

  • S4: A long narrow hill

  • S5: A plateau and plain separated by a steep cliff

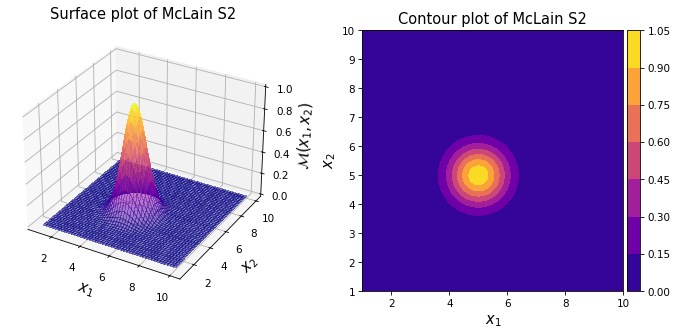

../_images/fe7fe317c7683ee5ecbcda6cb6adbc86a0dfef0e521a678734b835a099328e6e.png

As shown in the plots above, the resulting surface resembles a steep hill rising from a plain. The location of the peak is at \((5.0, 5.0)\) and with the maximum height of \(1.0\).

Note

The McLain S2 function appeared in a modified form in the report of Franke [Fra79] (specifically the (5th) Franke function).

In fact, four of the Franke’s test functions (2, 4, 5, and 6) are slight modifications of the McLain’s, including the translation of the input domain from \([1.0, 10.0]^2\) to \([0.0, 1.0]^2\).

Test function instance#

To create a default instance of the McLain S2 function:

my_testfun = uqtf.McLainS2()

Check if it has been correctly instantiated:

print(my_testfun)

Function ID      : McLainS2
Input Dimension  : 2 (fixed)
Output Dimension : 1
Parameterized    : False
Description      : McLain S2 function from McLain (1974)
Applications     : metamodeling

Description#

The McLain S2 function is defined as follows:

\[ \mathcal{M}(\boldsymbol{x}) = \exp{\left[ - \left( (x_1 - 5)^2 + (x_2 - 5)^2 \right) \right]} \]

where \(\boldsymbol{x} = \{ x_1, x_2 \}\) is the two-dimensional vector of input variables further defined below.

Probabilistic input#

Based on [McL74], the probabilistic input model for the function consists of two independent random variables as shown below.

Hide code cell source
print(my_testfun.prob_input)

Function ID     : McLain
Input ID        : McLain1974
Input Dimension : 2
Description     : Input specification for the McLain's test functions from
                  McLain (1974).
Marginals       :

 No.    Name    Distribution    Parameters    Description
-----  ------  --------------  ------------  -------------
  1      X1       uniform       [ 1. 10.]          -
  2      X2       uniform       [ 1. 10.]          -

Copulas         : Independence

Reference results#

This section provides several reference results of typical UQ analyses involving the test function.

Sample histogram#

Shown below is the histogram of the output based on \(100'000\) random points:

Hide code cell source
xx_test = my_testfun.prob_input.get_sample(100000)
yy_test = my_testfun(xx_test)

plt.hist(yy_test, color="#8da0cb");
plt.grid();
plt.ylabel("Counts [-]");
plt.xlabel("$\mathcal{M}(\mathbf{X})$");
plt.gcf().set_dpi(150);
../_images/51769090f83de3f15a6dc7cebc553e64b9bec3e16e566cf5c9bb88133499f98f.png

References#

[Fra79]

Richard Franke. A critical comparison of some methods for interpolation of scattered data. techreport NPS53-79-003, Naval Postgraduate School, Monterey, Canada, 1979. URL: https://core.ac.uk/reader/36727660.

[McL74] (1,2)

D. H. McLain. Drawing contours from arbitrary data points. The Computer Journal, 17(4):318–324, 1974. doi:10.1093/comjnl/17.4.318.
